PRY-900 Automatic Thermal Paper Slitting And Rewinding Machine

Brand Name : PRINTYOUNG

Model Number : PRY-900

Certification : CE

Place of Origin : Zhejiang, China

MOQ : 1 Set

Price : US 13000 Set

Payment Terms : L/C, T/T

Supply Ability : 30 Set/Sets per Month

Delivery Time : 45 days

Packaging Details : Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Type : Slitting Rewinder

Applicable Industries : Manufacturing Plant

Showroom Location : Egypt, Italy, Algeria, South Africa, Morocco

Warranty : 1 Year

Key Selling Points : High-accuracy

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Condition : New

Computerized : Yes

Voltage : 220V

Dimension : 1900*1950*1700mm

Max. Unwinding Width : 900mm

Max. Unwinding Dia : 1000mm

Max. Rewinding Dia : 270mm

Min Slitting Width : 30mm

Machine Max. Speed : 110m/min

Main Power : 2.95kw

Unwinding Shaft : 3'' (76mm) air eapanding shaft

Rewinding Shaft : 0.5'', 1'' or as your request

Weigth : 1200kg

Contact Now

PRY-900 Automatic Thermal Paper Slitting And Rewinding Machine
PRY-900 Thermal Paper Slitting Rewinding Machine
PRY-900 Automatic Thermal Paper Slitting And Rewinding Machine
PRY-900 Automatic Thermal Paper Slitting And Rewinding Machine
Technical Parameters
PRY-900 Thermal Paper Slitting Rewinding Machine
Max. Unwinding Width
900mm
Max. Unwinding Dia
1000mm
Max. Rewinding Dia
270mm
Min Slitting Width
30mm
Machine Max. Speed
110m/min
Main Power
2.95kw
Unwinding Shaft
3’’ (76mm) air eapanding shaft
Rewinding Shaft
0.5’’, 1’’ or as your request
Weigth
1200kg
Demension
1900*1950*1700mm/2000mm
Configuration

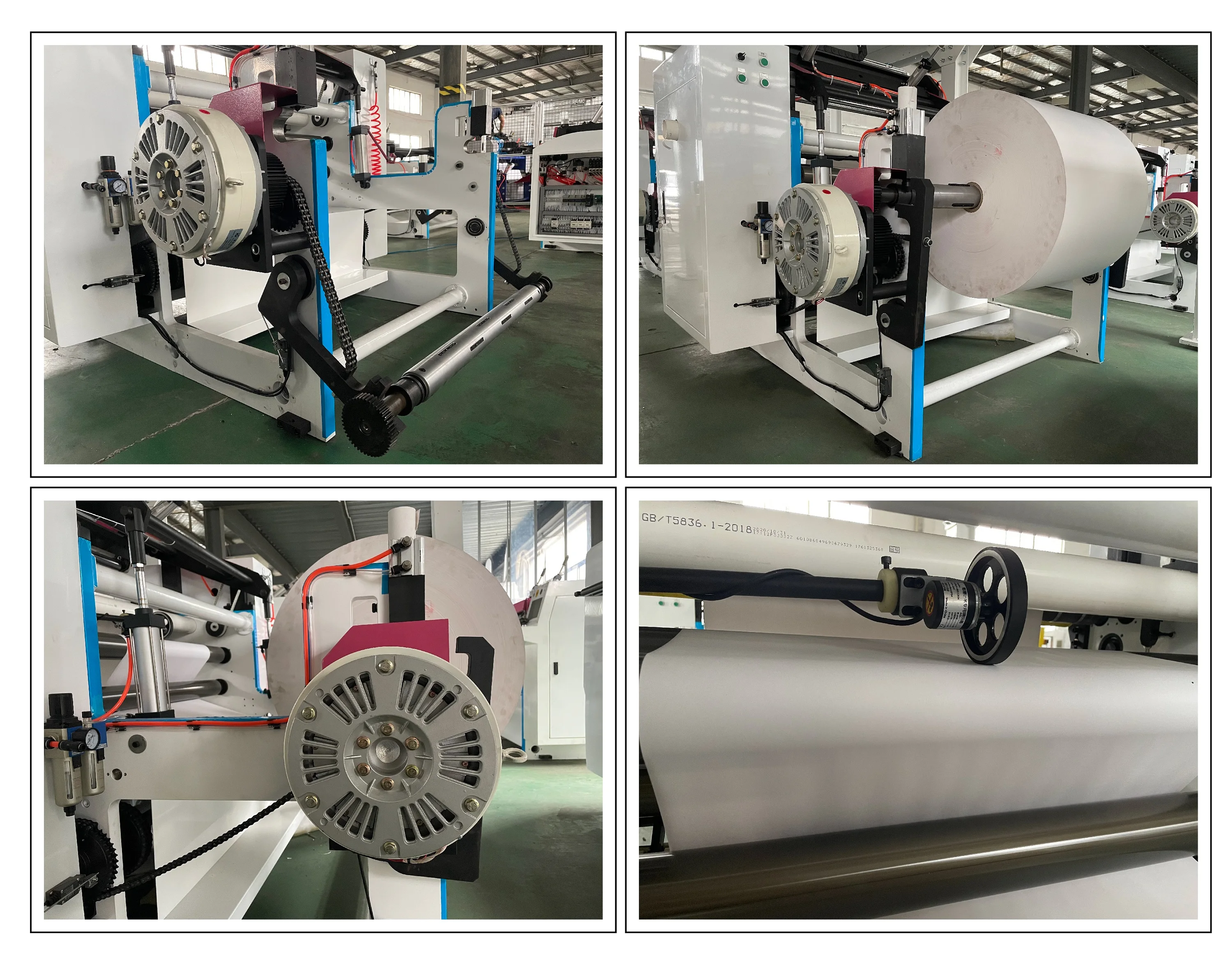

Unwinding Section

-Chain link automatic lift-up loading system

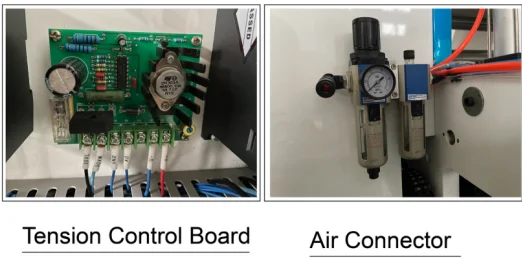

-Constant tension implant in PLC
-3’’(76mm)air expanding shaft

Slitting Section

-Disc cutter
-Disc Cutter Assembly adopt the cam self-locking
-Cutter with adjustable and moveable blade base
-Meter counter

Rewinding Section

-0.5”,1”,1.5” or as your request
-Pressure roller
-Center Rewinding technology

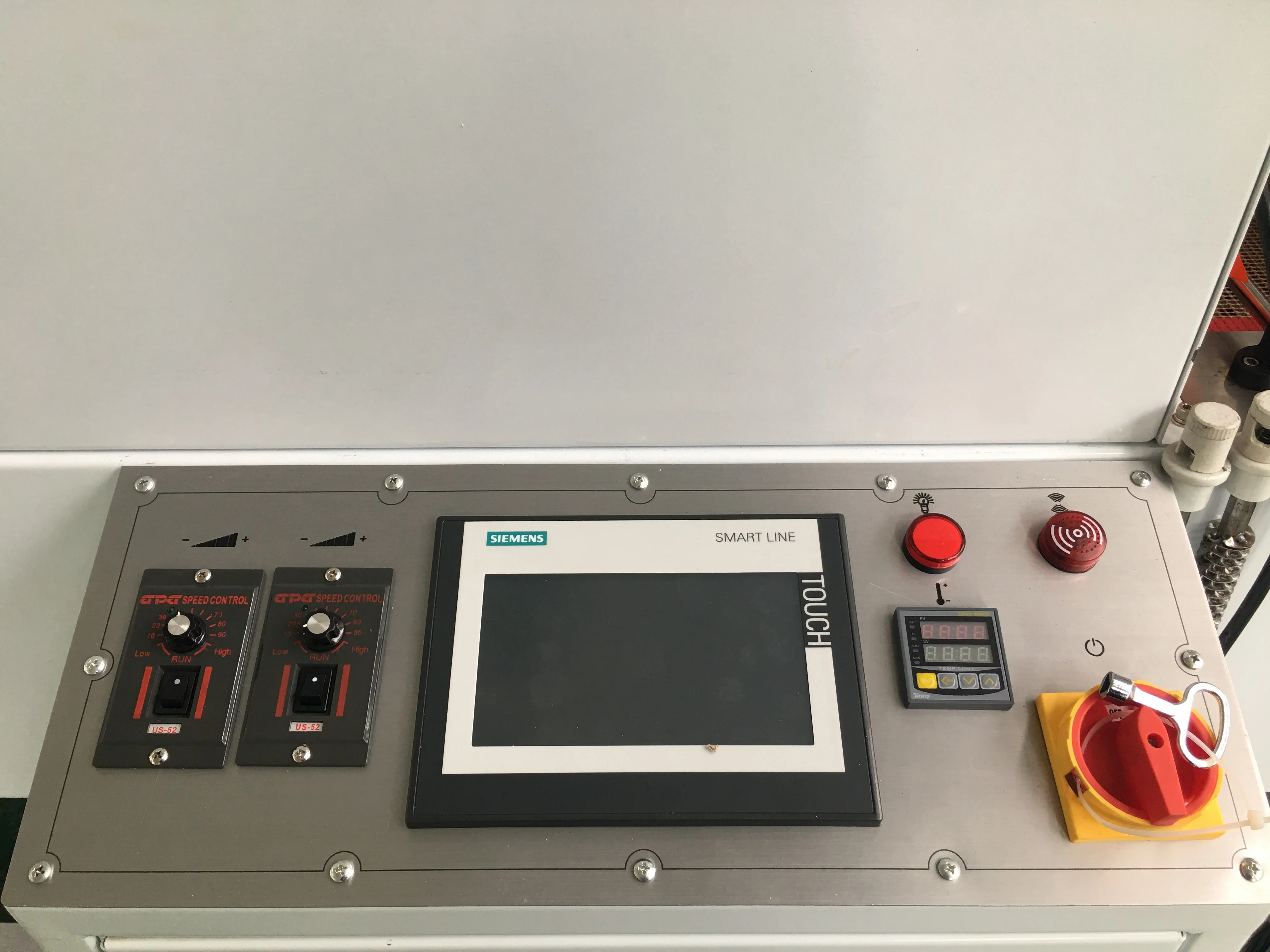

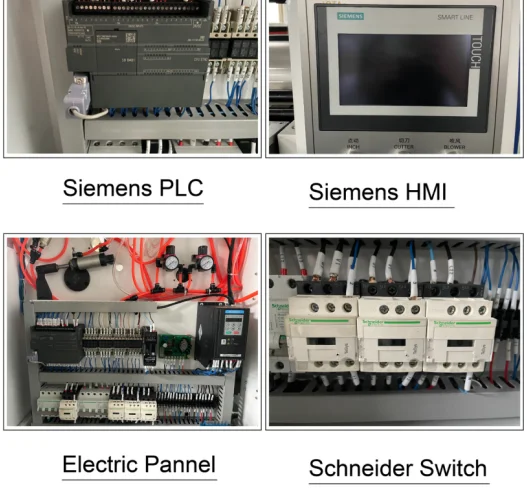

Controlling Section

-Siemens PLC & HMI
-Low voltage electrical appliances all from Schneider
-All the parameters are displayed on the monitor

Trimmed Waste Edge

-Edge Waste Blower with Expulsion Tube

Optional

-Automatic Paper Core Loader
-Automatic Cutting & Gluing Device
-Automatic Roll Cut Off & Hammer Unit

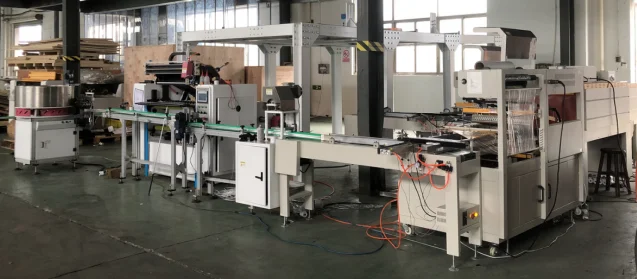

-Whole Packing Line for Thermal Rolls

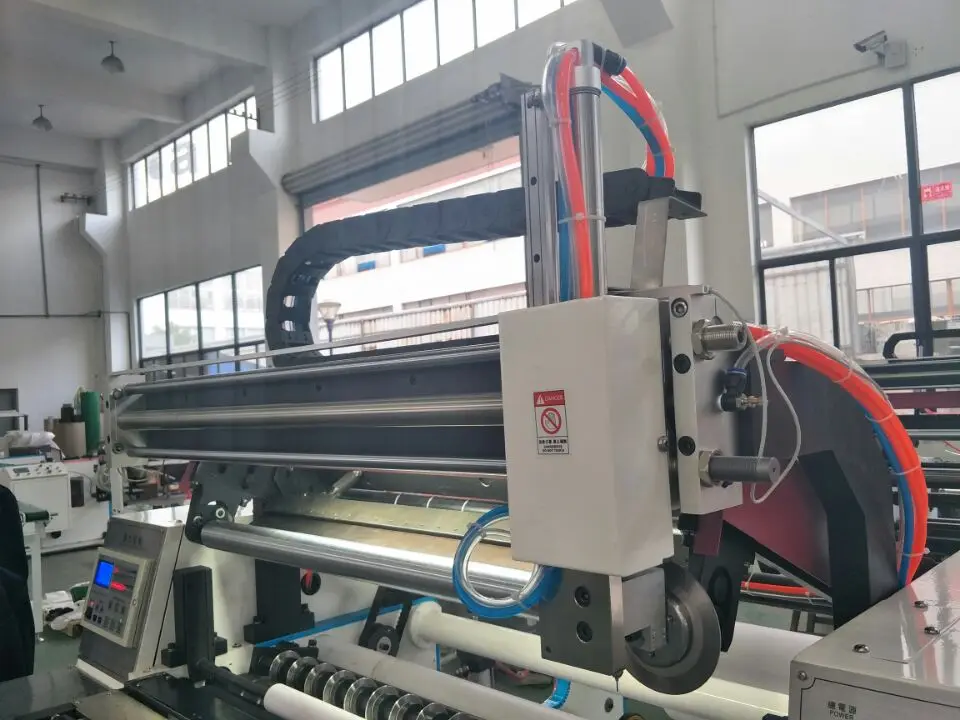

Optional 1:Automatic Cutting & Gluing Device(Payable)
PRY-900 Automatic Thermal Paper Slitting And Rewinding Machine
PRY-900 Automatic Thermal Paper Slitting And Rewinding Machine
PRY-900 Automatic Thermal Paper Slitting And Rewinding Machine
PRY-900 Automatic Thermal Paper Slitting And Rewinding Machine

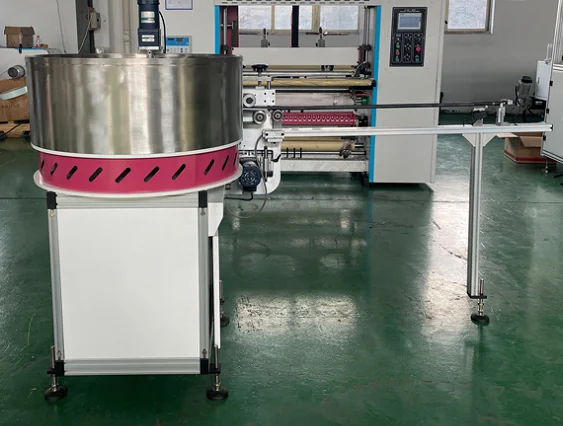

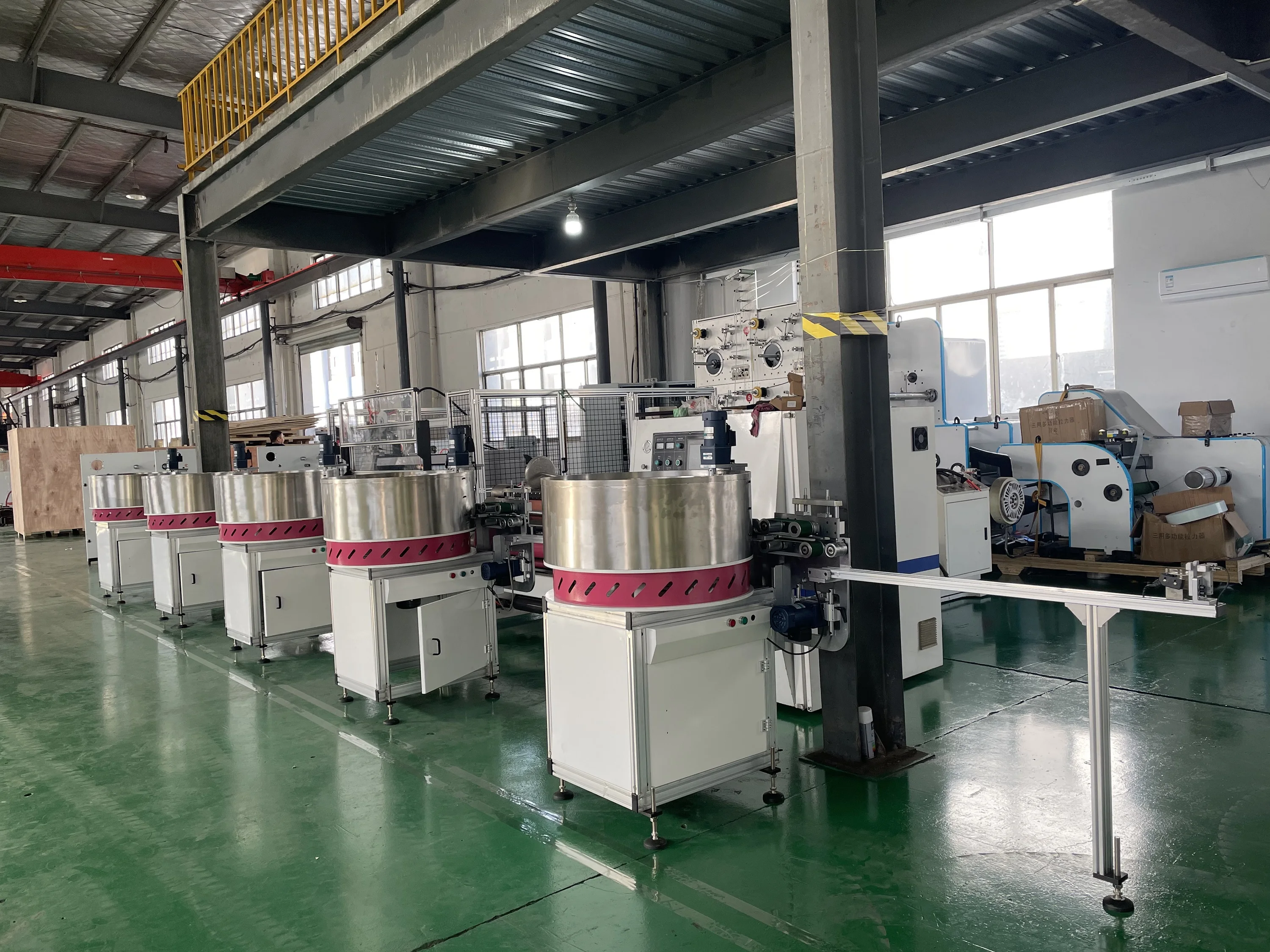

Optional 2:Automatic Paper Core Loading Machine
PRY-900 Automatic Thermal Paper Slitting And Rewinding Machine
PRY-900 Automatic Thermal Paper Slitting And Rewinding MachinePRY-900 Automatic Thermal Paper Slitting And Rewinding MachinePRY-900 Automatic Thermal Paper Slitting And Rewinding Machine
Capacity
0.13/m3
Min.Pipe Dia
12mm
Max. Pipe Dia
25mm
Working Speed
15times/min
Power
0.7KW
Size
1000*1000*1200mm
Weight
350kgs

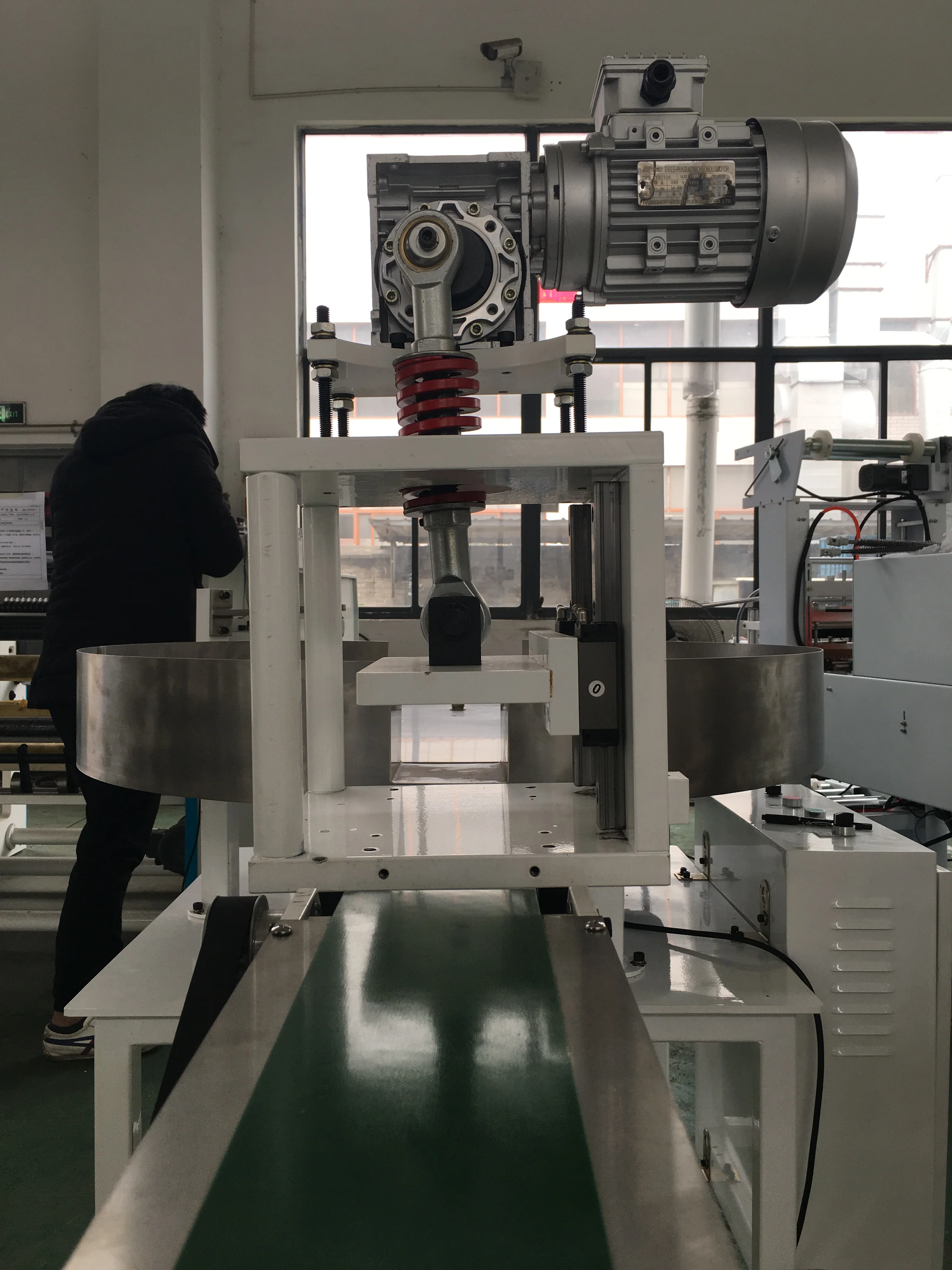

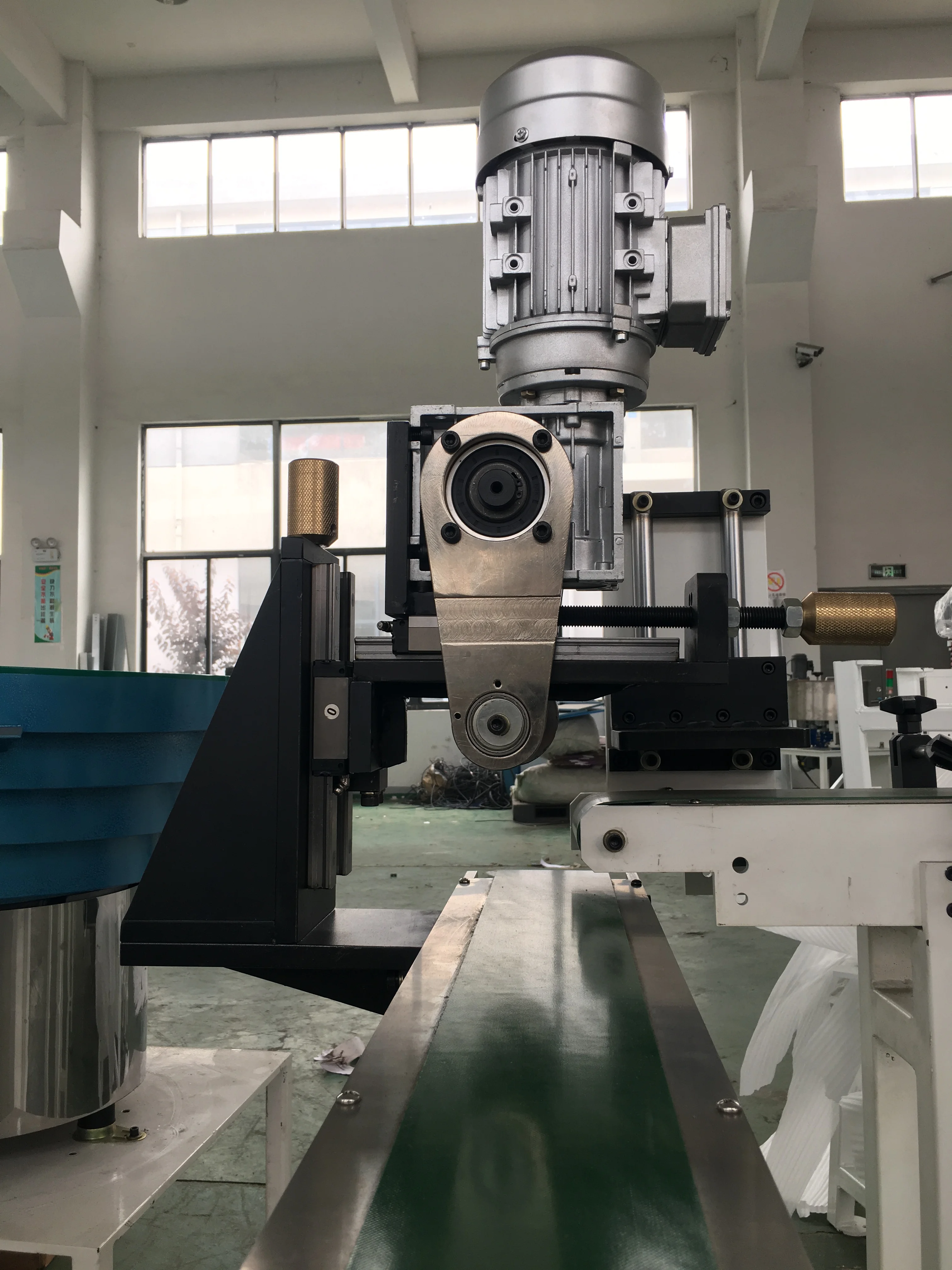

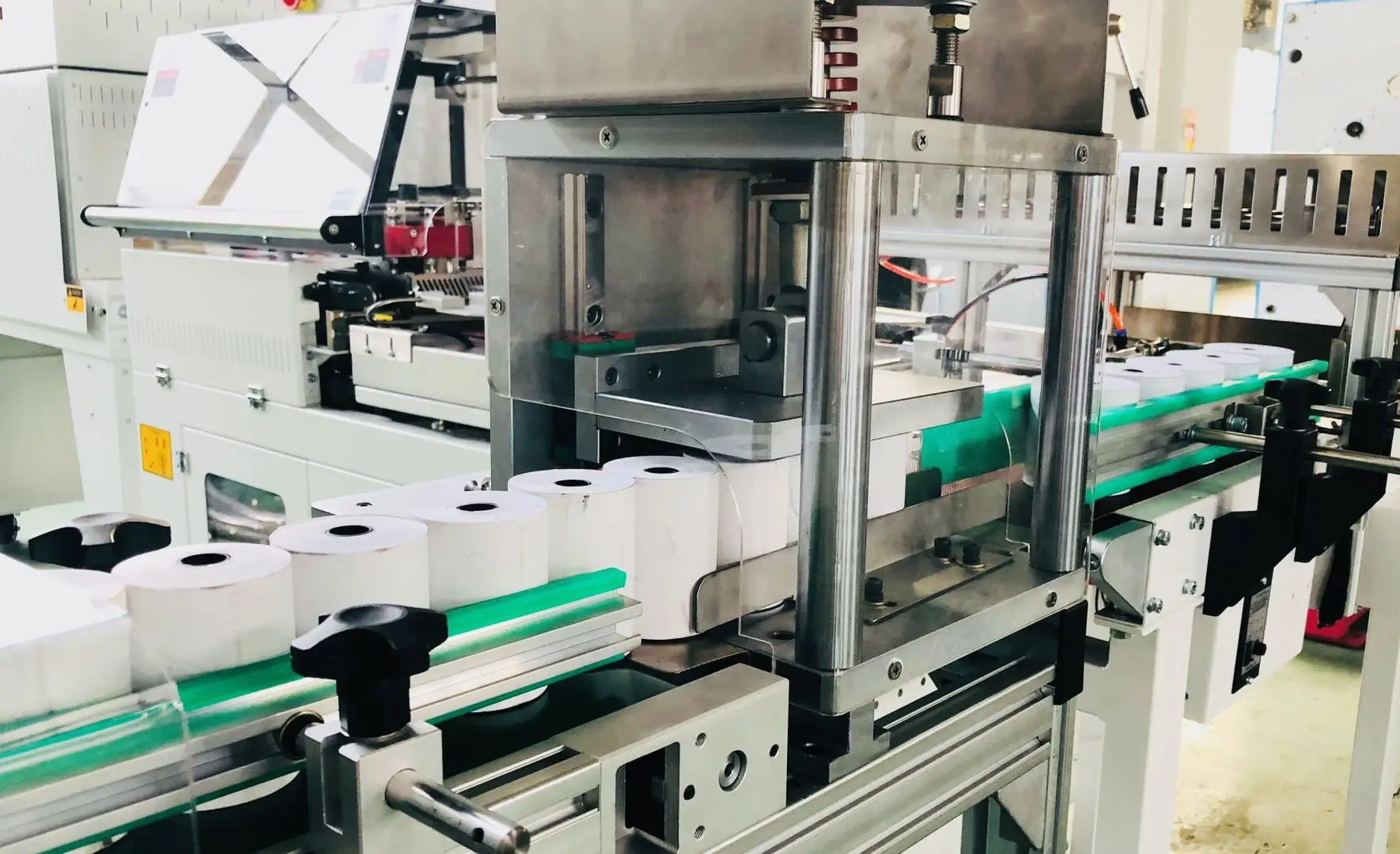

Option 3.Automatic Roll Cut Off & Hammer Unit
PRY-900 Automatic Thermal Paper Slitting And Rewinding Machine
PRY-900 Automatic Thermal Paper Slitting And Rewinding MachinePRY-900 Automatic Thermal Paper Slitting And Rewinding Machine
PRY-900 Automatic Thermal Paper Slitting And Rewinding MachinePRY-900 Automatic Thermal Paper Slitting And Rewinding MachinePRY-900 Automatic Thermal Paper Slitting And Rewinding Machine

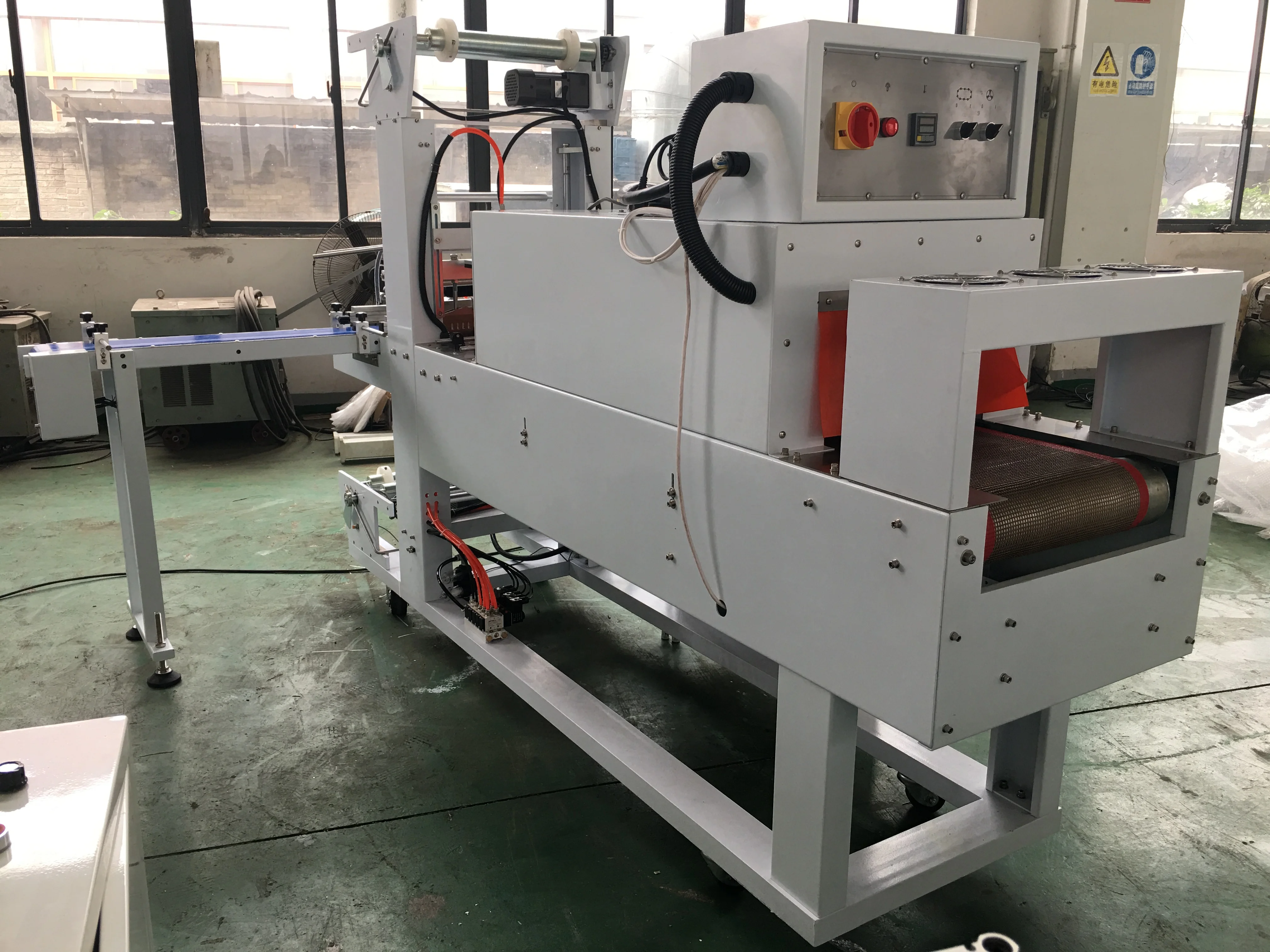

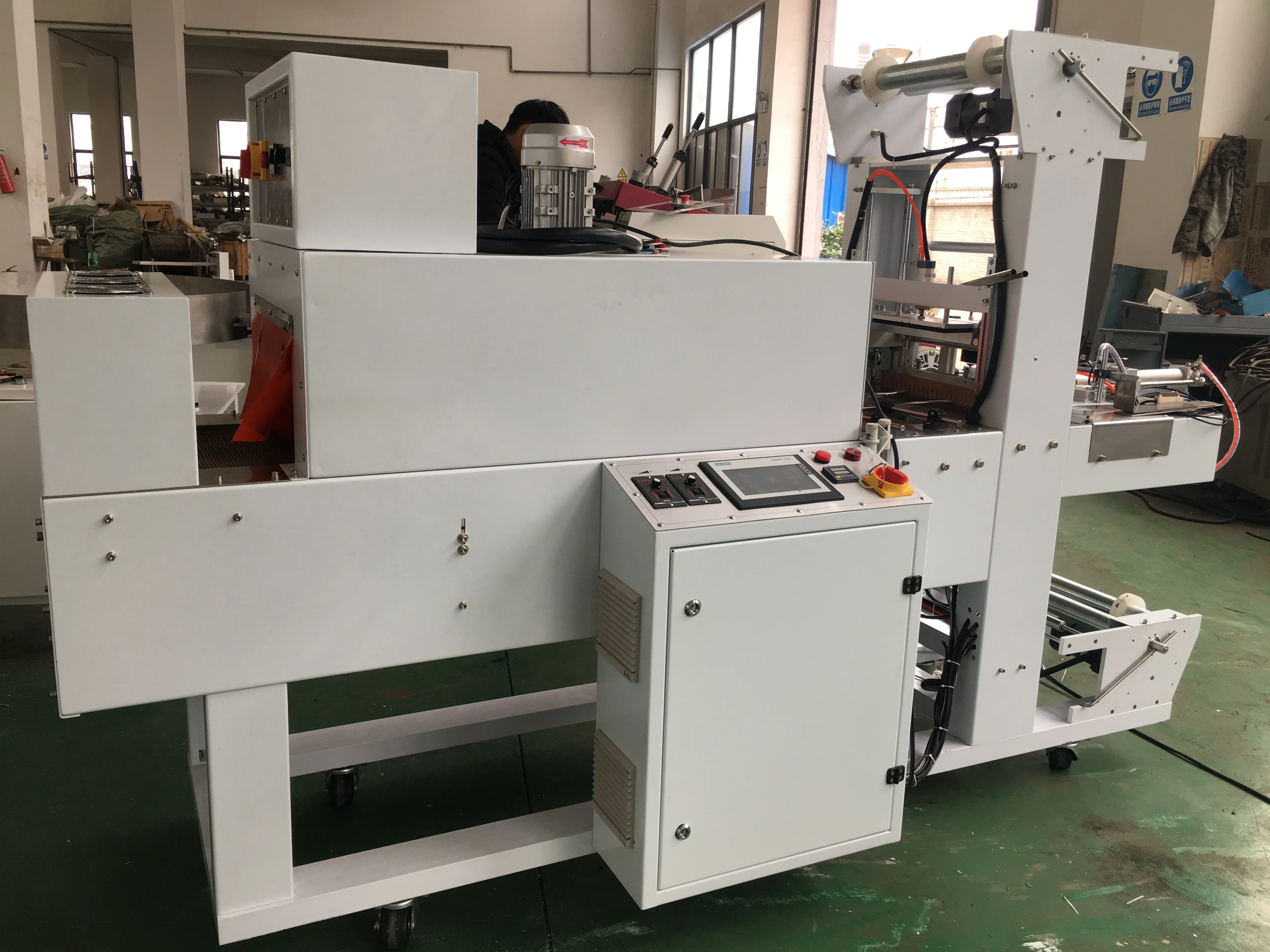

Temperature compensating solid state controllers.
Belt conveyor with variable speed and adjustable.
Top& side heat,stainless-steel heater.
Quick change seal wire with tension assembly.
Double Magnetic Hold-down; Sealing blade on top(L-sealer).
Roller,wire mesh optional.
High velocity turbo-tunnel.
Combination unit-system runs on one circuit.
Works with all types of shrink films,but specially tunnel for non-PVC,polyolefin films.
PRY-900 Automatic Thermal Paper Slitting And Rewinding MachinePRY-900 Automatic Thermal Paper Slitting And Rewinding Machine
PRY-900 Automatic Thermal Paper Slitting And Rewinding Machine
PRY-900 Automatic Thermal Paper Slitting And Rewinding Machine
PRY-900 Automatic Thermal Paper Slitting And Rewinding Machine
PRY-900 Automatic Thermal Paper Slitting And Rewinding Machine
PRY-900 Automatic Thermal Paper Slitting And Rewinding Machine
PRY-900 Automatic Thermal Paper Slitting And Rewinding Machine
PRY-900 Automatic Thermal Paper Slitting And Rewinding Machine
PRY-900 Automatic Thermal Paper Slitting And Rewinding Machine
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
