PRY-1650G Automatic High Speed Laminator For Corrugated Paper To Corrugated Paper

Name: PRY1650G Automatic High Speed Laminator For Corrugated Paper To Corrugated Paper
Brand: PRINTYOUNG
Price: 65000 USD

Best PRY-1650G Automatic High Speed Laminator For Corrugated Paper To Corrugated Paper wholesale

Brand Name : PRINTYOUNG

Model Number : PRY-1650G

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : US 65000 Set

Payment Terms : L/C, T/T

Supply Ability : 30 Set/Sets per Month

Delivery Time : 60 days

Packaging Details : Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Model : PRY-1650G

Max. Sheet Size : 1650X1450mm

Min. Sheet Size : 550X550mm

Max Speed : 100m/min

Accuracy : ±1.5mm

Overall : 10X2.4X2.3M

Machine Weight : 8000kg

Machine Power : 22KW/380V

Top Paper : A/B/C/E/F Two layers corrugated paper

Bottom Paper : A/B/C/E/F Two layers corrugated paper

Contact Now

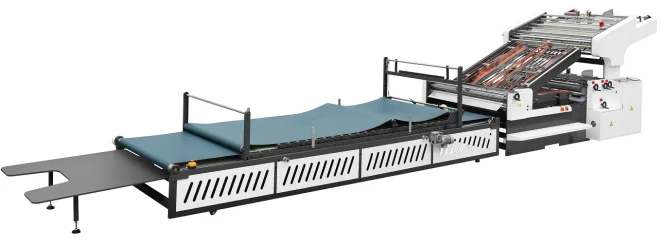

PRY-1650G Automatic High Speed Laminator

Features

PRINTYOUNG corrugation to corrugation laminating machine,a customized model special for the corrugation manufacture,which fills a vacancy of the laminating equipment in the world.Its low investment,small occupy and easy set-up is a good complement to the large corrugation production line.This machine is easy handling, when set up the sheet size,all machine parts will adjust automatically,which completely realizes the intelligent operation.

1.Max speed 10000sheet/hour
2.The most advanced electrical control system
3.Full accomplishment of intelligence and automation
4.Automatic adjustment when changing sheet size
5.Curve velocity assures the high accuracy
6.The newest technology of intermittent registration
7.Top and bottom sheet automatic tracing
8.Bottom sheet left and right whole course correction
9.Top sheet left and right whole course correction
10.Intelligent detection of sheet length
11.Intelligent error display and alarm system
12.Intelligent glue supplying and recycling system
13.Intelligent cleaning and water circulation system
14.Bottom sheet bend and pressurize device
15.Bottom sheet suction power adjustment device
16.US MAC component opens and closes suction
17.Stainless steel gluing cylinder
18.Anti glue swing device

Technical Parameters

PRY-1650G Automatic Flute Laminator
Model	PRY-1650G
Max. Sheet Size	1650X1450mm
Min. Sheet Size	550X550mm
Max Speed	100m/min
Accuracy	±1.5mm
Overall	10X2.4X2.3M
Machine Weight	8000kg
Machine Power	22KW/380V
Top Paper	A/B/C/E/F Two layers corrugated paper
Bottom Paper	A/B/C/E/F Two layers corrugated paper

Configuration

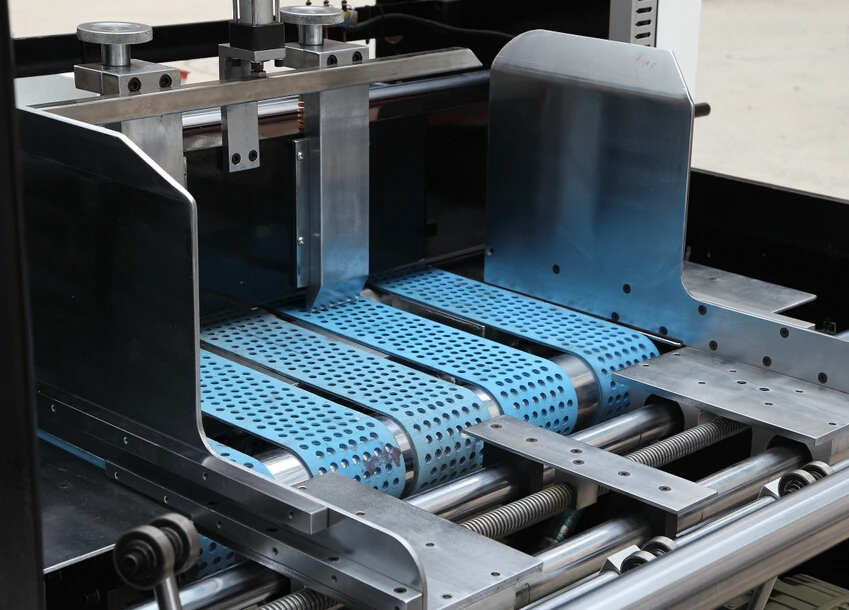

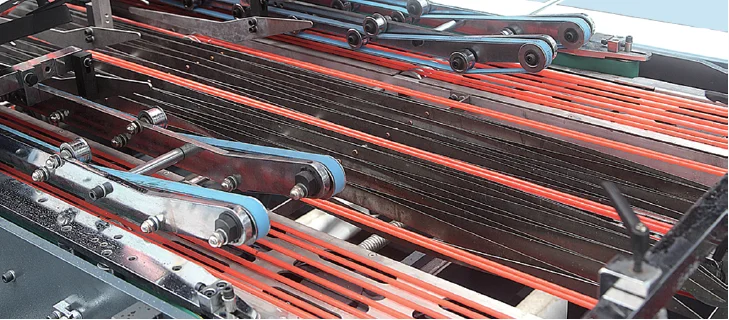

Top and Bottom Paper Feeding Positioning Part

Use imported Servo motor electric controlling system, Servo control of the intermittent fixed position,in the

with Japan NITTA suction belt to make suction power process of positioning, positioning gauge work as

inverter,and belt cleaned by water roller;Patented ”start–speed up–tracking-speed reduction-stop”

technology to ensure corrugate and cardboard goes curve speed run,make sure positioning more accurate.

out smoothly and simple operation.

Side Positioning Glue Roller

Left and right side synchronous block complete the Stainless steel roller,never rust,after narrowly grinding,

accurate positioning,both top sheet and bottom paper guaranteed the minimum amount glue coated evenly.

are equipped with accurate positioning device on left Down roller be cleaned by water roller.

and right.

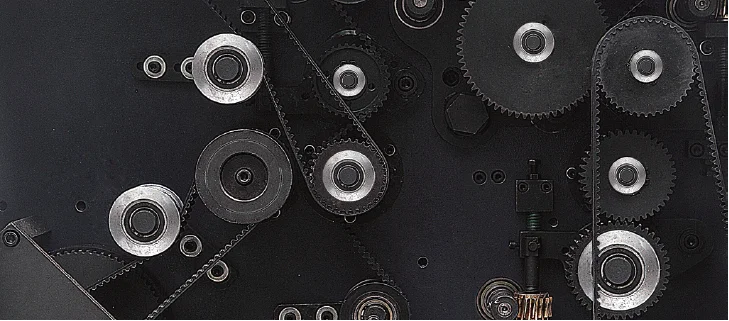

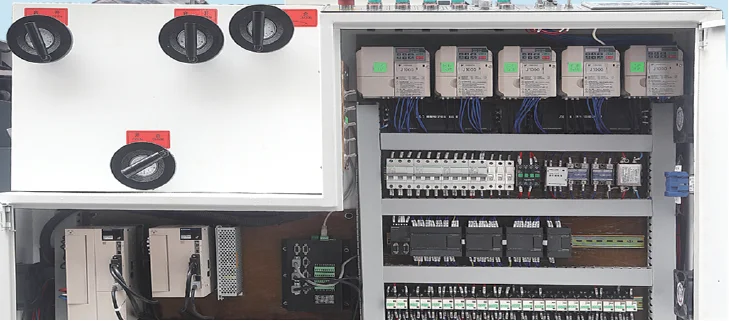

Transmission Electrical System

With imported double teeth belt drive and Switzerland Designed in the accordance with European CE

ROSTA tension device ensure the drive accurate,stable requirement,ensure machine stability,high efficiency

and low noisy. and low failure.Using man-machine interface and PLC combination,display all the information,such as warning,

error detect,failures,and operating speed,etc on the

screen at a glance.

Q1.Are you a manufacturer or a trading company?

A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.

Q2.What is the machine warranty?

A:One year.After the warranty,we still provide technical support to buyer at low cost.

Q3.What is the production time while placing order?

A:Normally about 10-20 days.

Q4.What is the delivery time?

A:15-30days after deposit.

Q5.Can your company handle shipping for customers?

A:Yes,just give us destination sea port or container yard.

Q6.Does the packing strong?

A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.

Q7.How about the machine installation and training?

A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.

Q8.Do you have machines in stock?

A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.

Q9.How can you assure the machines’ quality?

A:Each machine will be test running at least 24 hours before delivery to assure the quality.

And during the warranty,we will give spare parts for free if machine has any problem.

Q10.Do you inspect machines or test running before packing?

A:Of course we do.We have QC department to debug the machine before packing.

If you want to use specific material to do the test running,you need to pay for the cost of the material.

Q11.What’s the payment term?

A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.

Q12.Do you accept factory visiting?

A:Warmly welcome for your visiting.

Q13.How many years are you in printing field?

A:The Shanghai company since in 2008,the factory is more than 25years.

Q14.How many clients do you have?

A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
